Snap-Jaw Saw Blade
20 years of combat robotics experience. Modular weapon & armour. STEP/STL files included.
Choose your base kit
Select your drive motor required — sets pulley bore size
Competition region required
Add-on accessories — optional
General spare components — optional
Your build

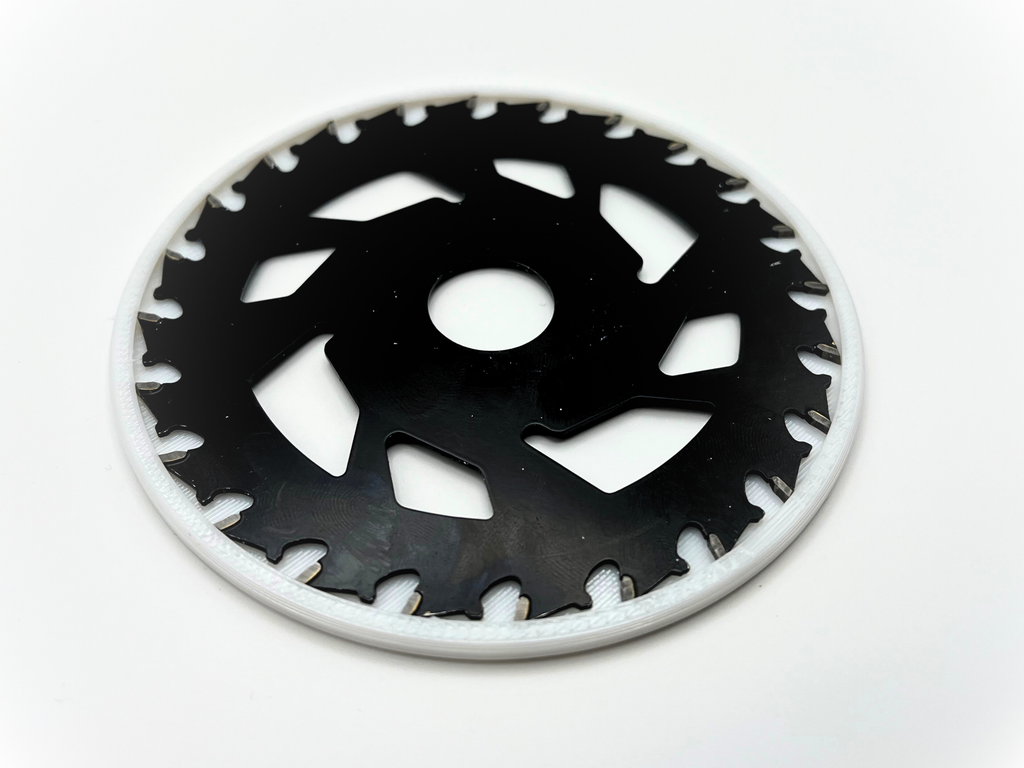

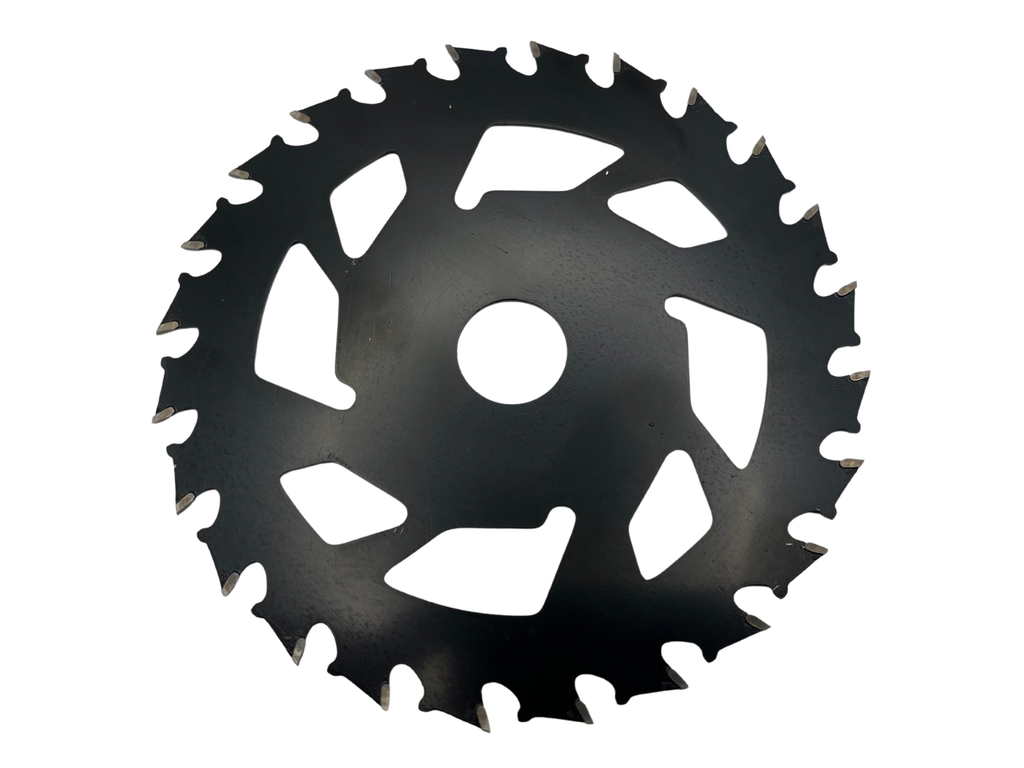

Introducing the Snap Jaw Blade – A carbide tipped circular saw, battle tested and proven to chop through the opposition like butter.
Intended for use with Beetle Weight class fighting robots. Available in 3 separate sizes to allow for use in various designs and applications.
Sizes available:
· 110mm (4inch)
· 125mm (5inch)
· 132mm(5.2inch)

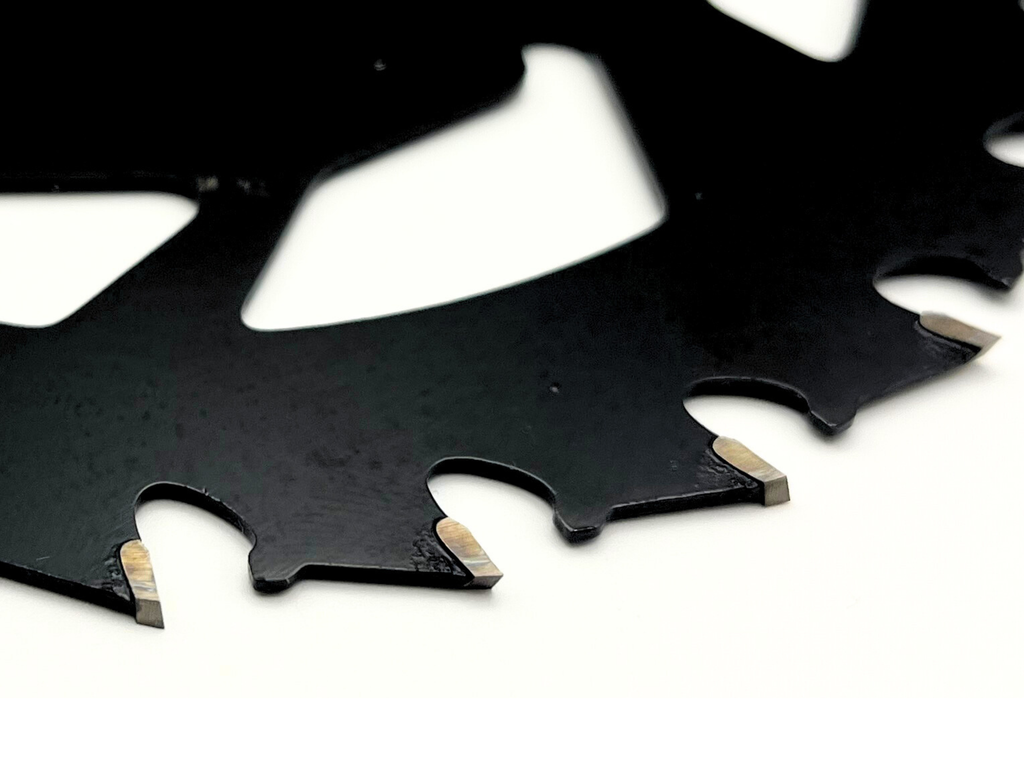

Made from low carbon steel with 24 carbide tipped teeth. Stylish cut-outs in the centre allow for a weight-efficient solution optimising cutting depth and blade inertia, maximising cutting effectiveness.
See image for key dimensions. STEP 3D CAD files included!
Weight:
· 110mm - 56 grams
· 125mm - 66 grams
· 132mm - 77 grams
Package Includes:
· Single saw blade
· Plastic protective cover
Important Safety Information
· This product is a metal cutting blade, with very sharp edges and must be used with caution.
· Use of this blade requires care, attention, and appropriate safety equipment.
· Beware that carbide teeth can break off during use and all use of this blade should be contained within an enclosed fighting area away from humans.
· Always follow local laws, competition rules, and safety guidelines when operating combat robots.
| Weight class | 1.5kg UK / 3lb US |
| Weapon system | Modular — Fang flipper, Talon forks, Basilisk plough |
| Construction | TPU plastic, aluminium, hardened steel |
| Drive | Belt drive, 4-wheel, multi-motor compatible |
| Files included | STEP / STL for 3D printing |
| Skill level | All levels (ages 12+) |
| Model | |
| Warranty | Please contact us |
