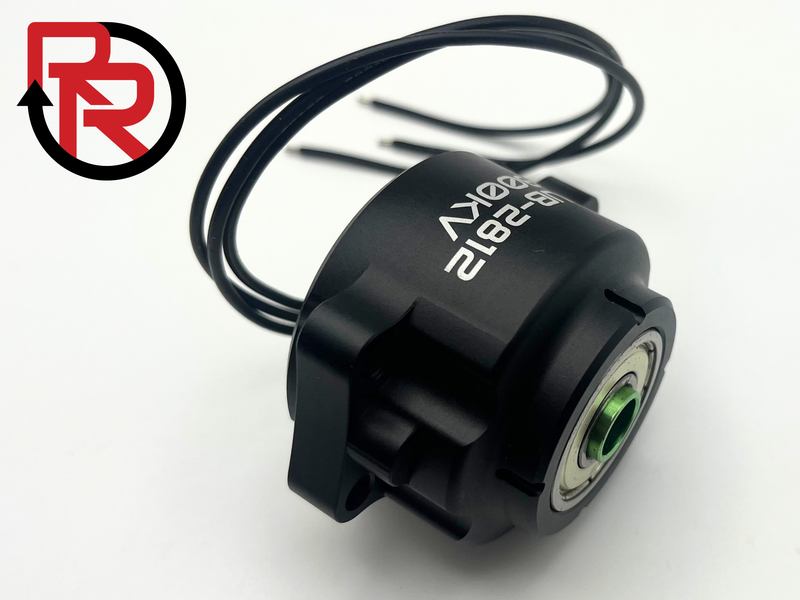

Repeat 2812 Beetleweight Hub Motor 800kv

Introducing the Repeat Robotics Beetleweight Spinner Hub Motor (800kv)

Have you been looking for an easy way to create a high power spinner on your next beetleweight? Want a mechanically robust weapon solution? Tired of worrying about belts and pulleys? The Repeat 2812 hub motor has been custom designed for the combat robotics community, with guidance from many award winning builders with 20+ years of combined hub motor experience. This motor has been tested by top bots across the world and now you can benefit from the reliability and durability of a custom hub motor for a fraction of the price!

Specification:

• Stator size: 2812
• 175g without wires
• 182.5g with full length wires
• 195.6g with blade mounting hardware
• Large 6805 and 6000 bearings
• Ring bearing held in by 2x M3 screws
• M4x18.5mm motor mount pattern
• M5 weapon mount screws
• Works with blades from 4mm thick to 12mm thick.
• Overall dimensions: 58mm max diameter by 35mm length
• Comes with battle hardened magnet ring (also available separately)
• Magnet ring can be removed via 4x 2mm pins
• Extra long wires to span even the widest of robots.
• 800kv - Recommended for 3S-6S usage. Ensure that your spinner is within the 250mph tip speed limit and complies with UK safety rules. For help with designing your weapon to comply with this 250mph tip speed rule, the following calculator can be used provided by Bristol bot Builders: https://bristolbotbuilders.com/tools/tipspeed/

Components required for use:

• 8mm diameter shoulderbolt or custom shaft must be used to house the product securely to avoid damage during use.
• Magnet Ring: Includes only the magnet ring, not the housing
• Base Bearing Shim: Aluminum shim for the base of the motor to prevent the 6704 bearing moving.

Find the 3D model here: https://grabcad.com/library/repeat-2812-beetleweight-hubmotor-1

Recommended for use with the Repeat Robotics 80a Vortex Spinner ESC listed on our store!
